Performance
7.5+ Gbps
Latency
< 5 ms
Bandwidth
1200 MHz
Frequency Bands
5G mmWave
n257, n258
n257, n258
Deployment
Outdoor, macro cell
Duplex
TDD

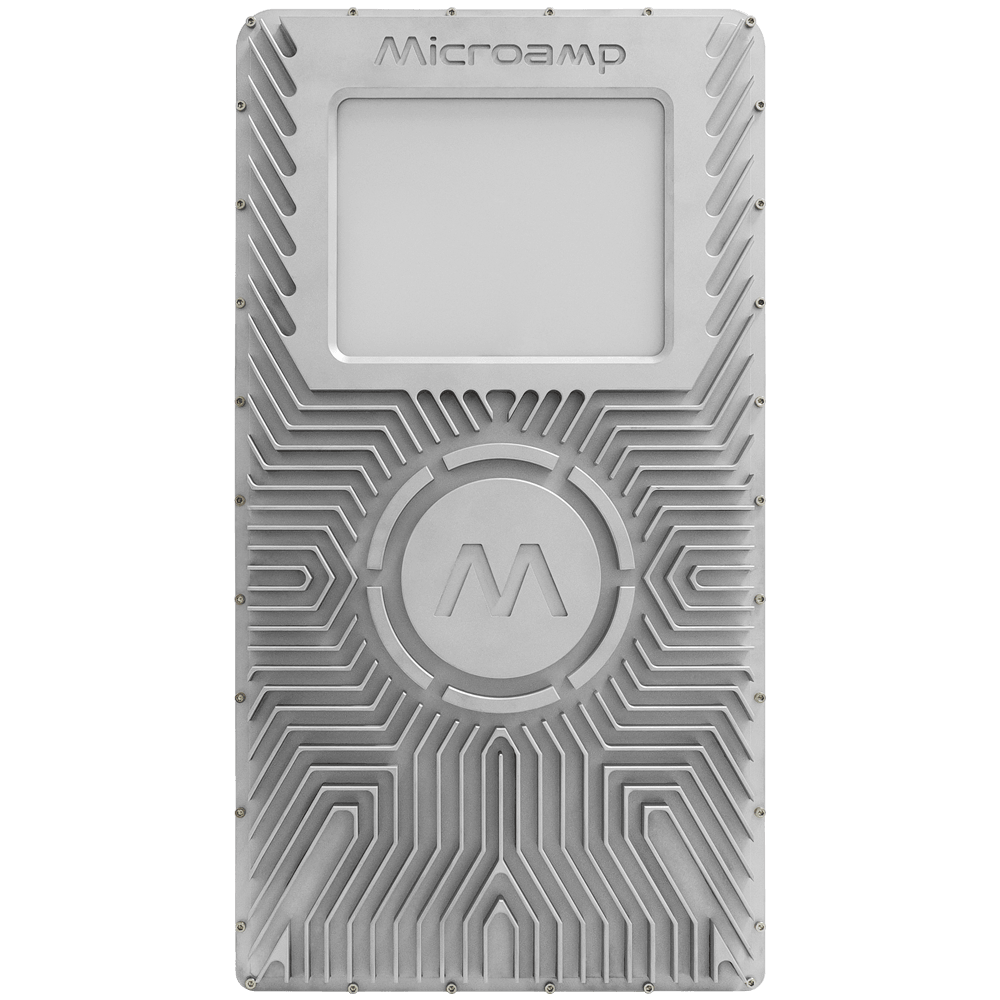

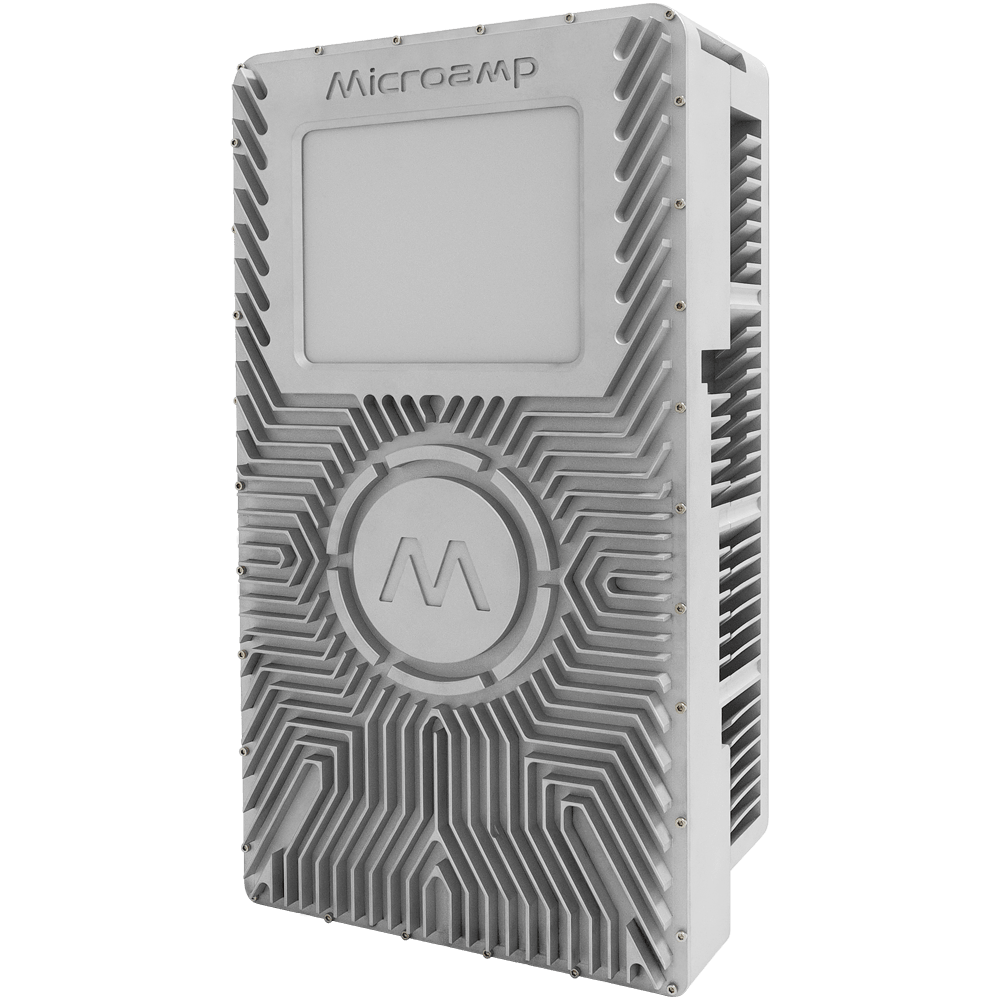

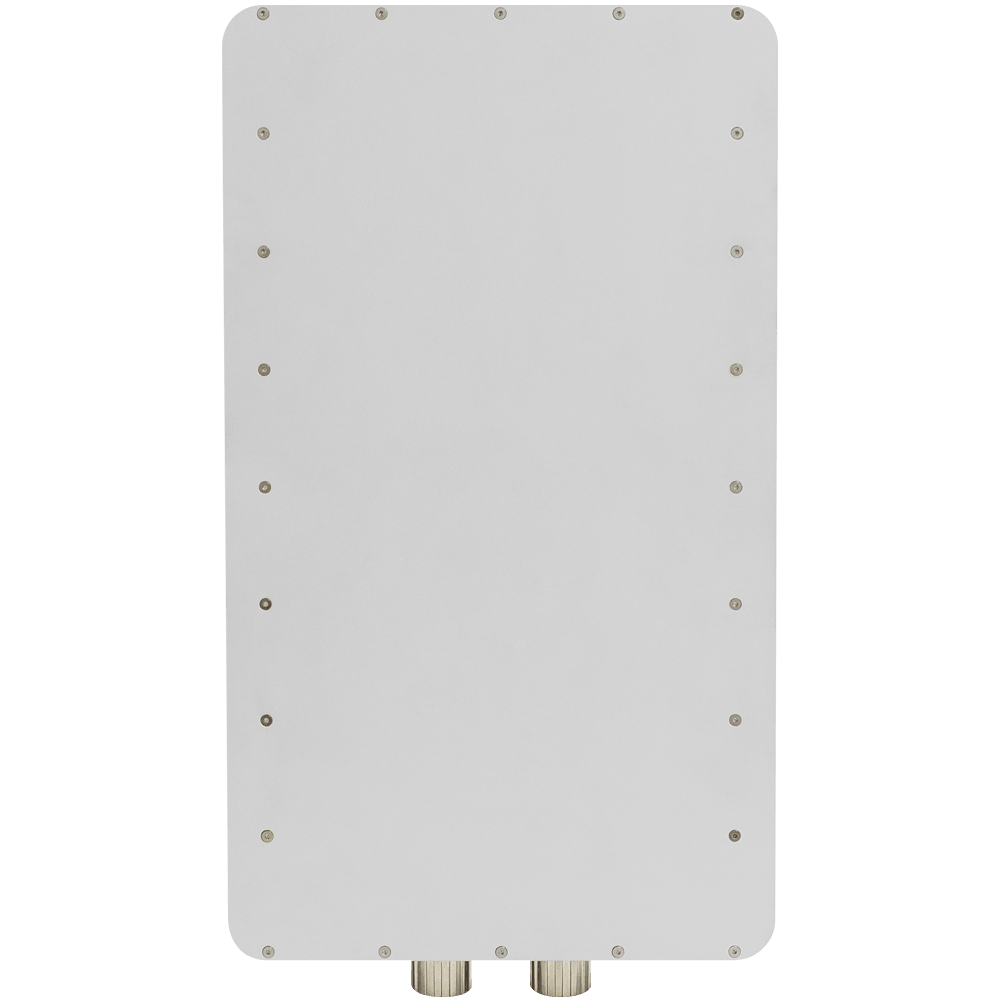

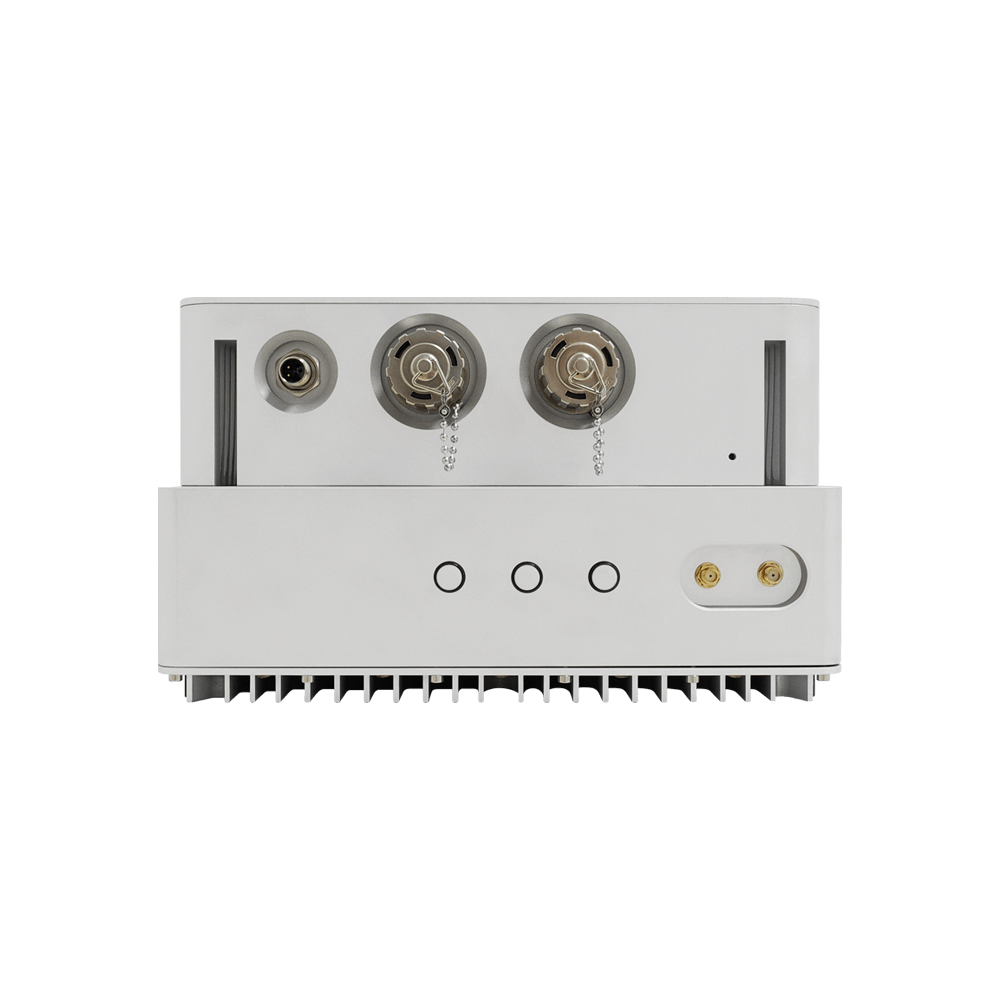

The CellBox One A200 5G mmWave gNodeB is a high-power, carrier-grade all-in-one wireless base station for deploying high-capacity outdoor 5G mmWave networks of outstanding stability and near-zero latency. Supporting a wide bandwidth, it delivers significantly high peak capacity and expanded coverage for demanding environments.
more
This powerful platform allows acceleration of unique algorithms in the 3GPP-compliant L1 Phy layer to provide users with extraordinary mmWave performance. It features a high-output radio configuration that will be upgraded to 4T4R MIMO to double throughput as the network demands scale. The gNodeB comes with a flexible split options:
- option 2 (DU+RU)
- option 0 (CU+DU+RU)
It also offers the possibility to implement CN functions directly in the radio unit.
The CellBox One A200 5G mmWave gNodeB provides excellent computing power in higher network layers while remaining a very compact, cost-effective and easy-to-deploy solution. It supports all unique Microamp 5G mmWave network features, such as Integrated Access and Backhaul, with Backhaul Adaptation Protocol applied in the DU layer, Mobility Mode, Uplink-Heavy System and 5G LAN.
Every CellBox One A200 5G mmWave gNodeB is covered by post-deployment service, customer support and warranty.
- option 2 (DU+RU)
- option 0 (CU+DU+RU)
It also offers the possibility to implement CN functions directly in the radio unit.
The CellBox One A200 5G mmWave gNodeB provides excellent computing power in higher network layers while remaining a very compact, cost-effective and easy-to-deploy solution. It supports all unique Microamp 5G mmWave network features, such as Integrated Access and Backhaul, with Backhaul Adaptation Protocol applied in the DU layer, Mobility Mode, Uplink-Heavy System and 5G LAN.
Every CellBox One A200 5G mmWave gNodeB is covered by post-deployment service, customer support and warranty.
