Operating Frequency
5G mmWave:
n257/n258/n260/n261
n257/n258/n260/n261
Ethernet
10GbE, PoE (802.3bt)
IP Grade
IP65
MIMO
2x2
Chipset
Qualcomm SDX65
Antenna
4x QTM547

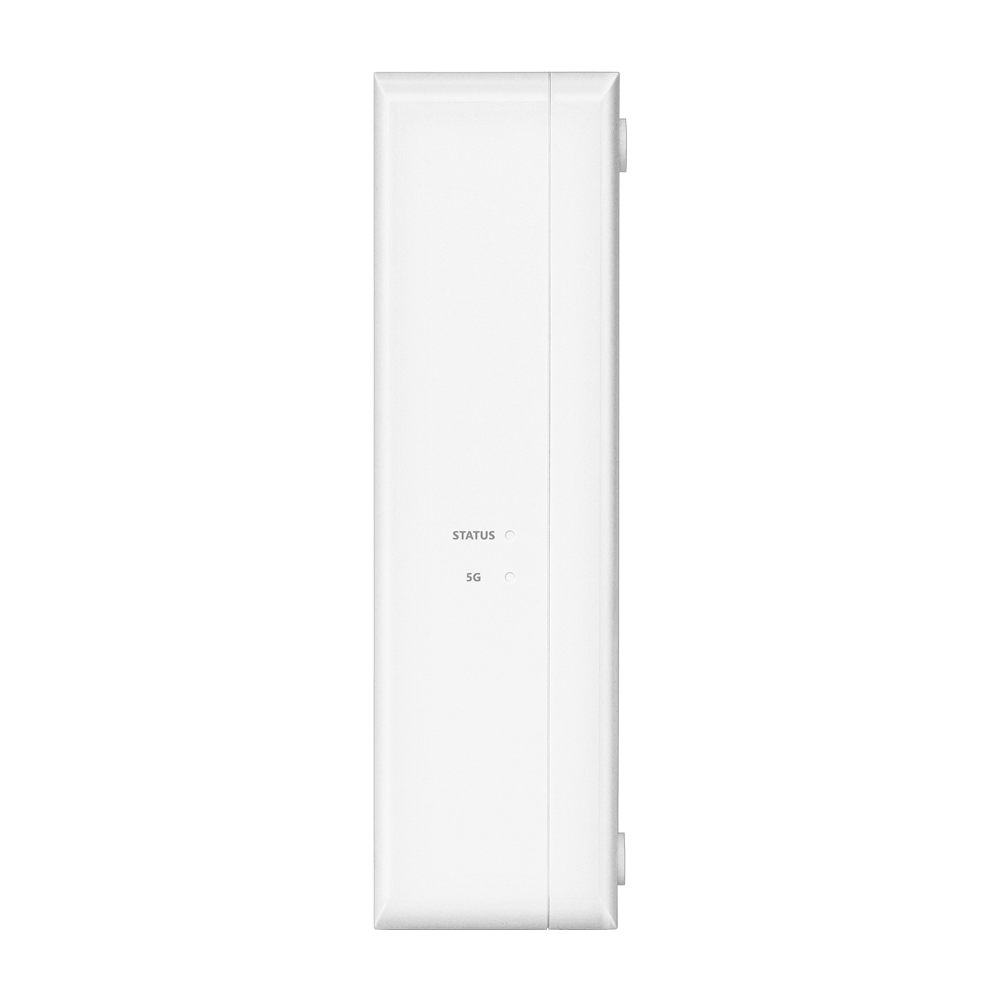

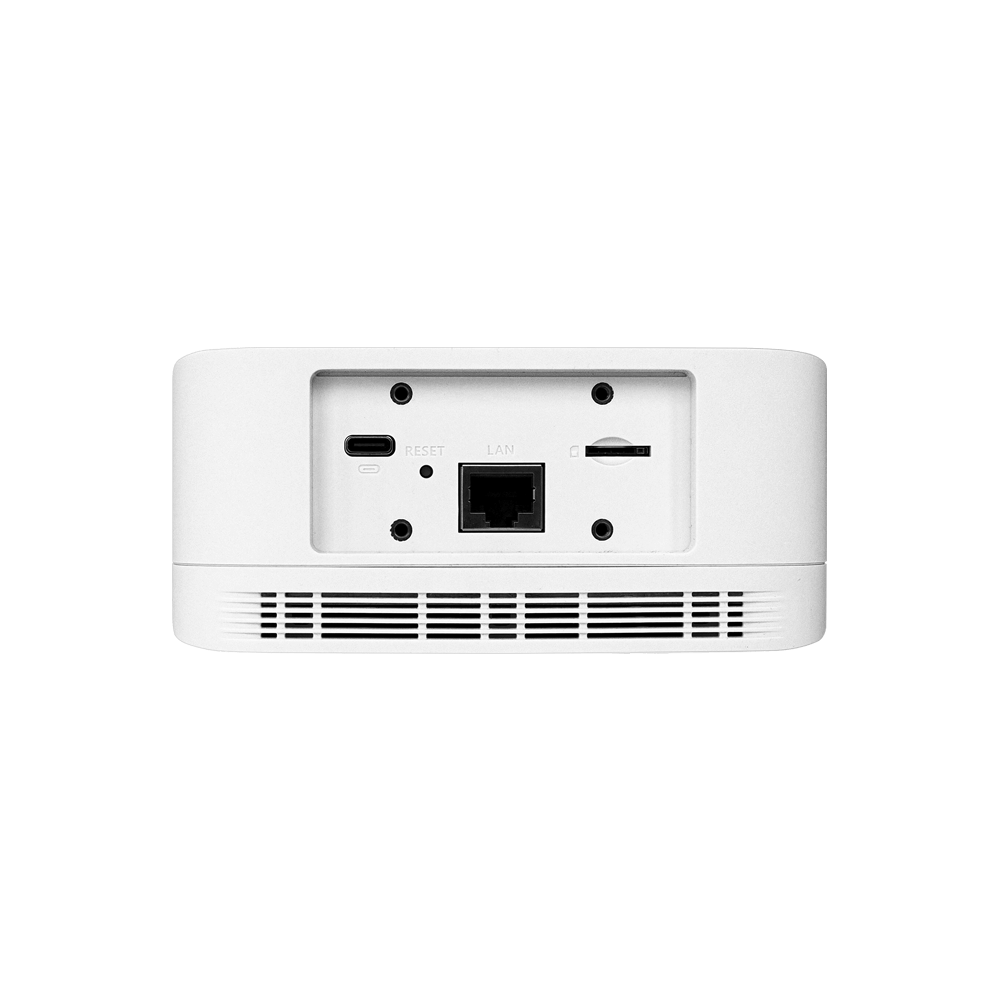

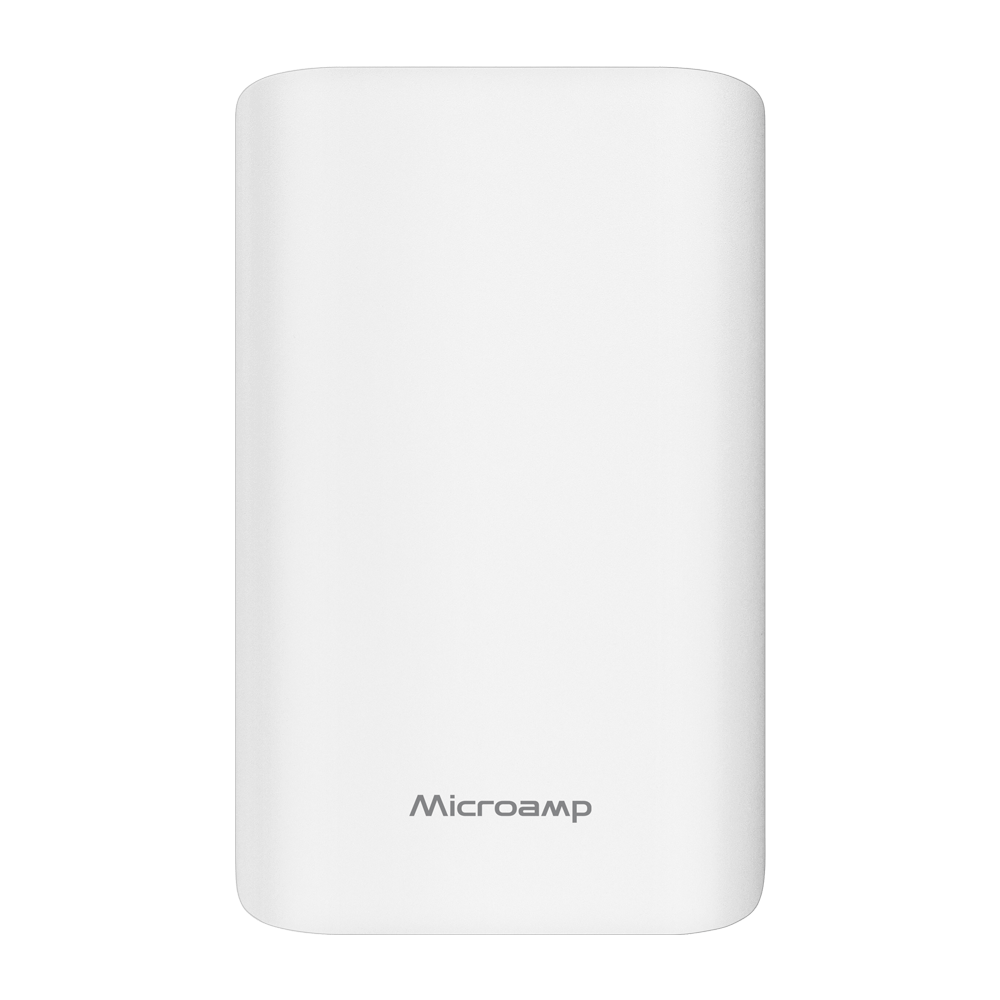

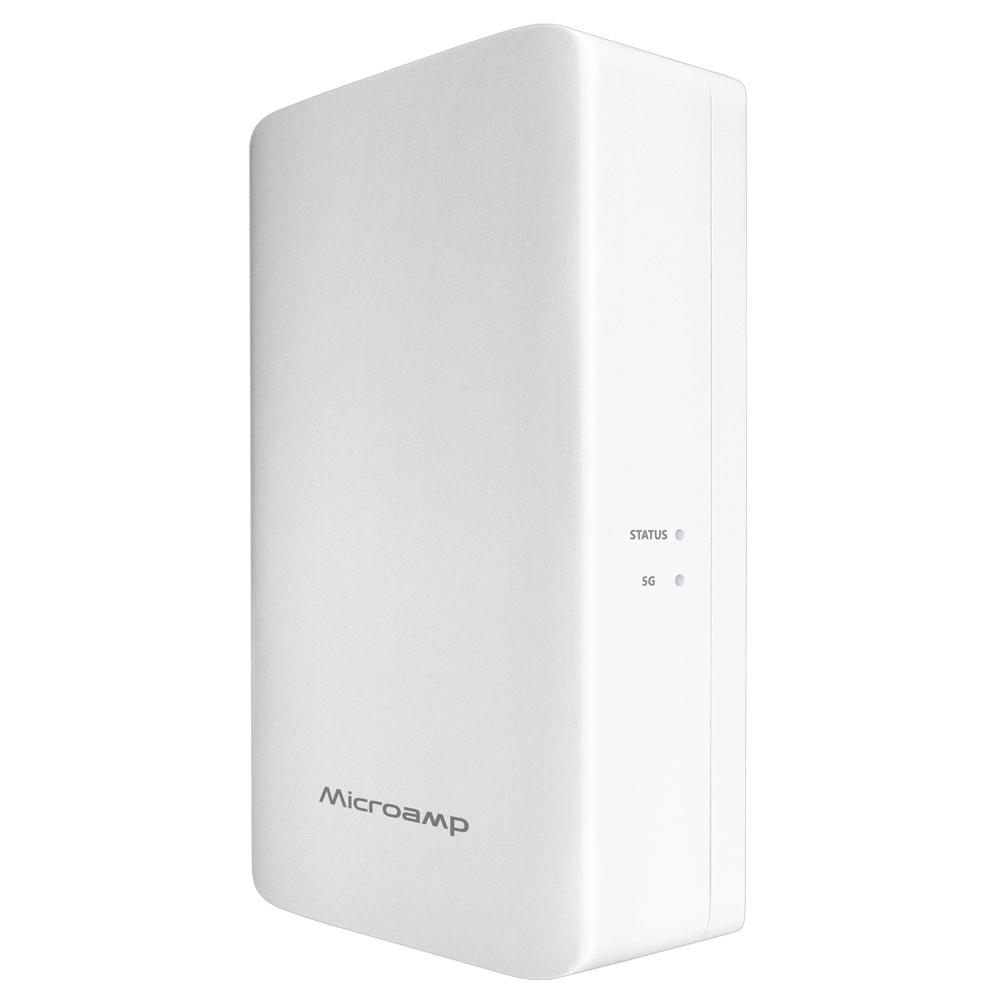

The U501 5G mmWave CPE is a high-speed packet access FWA terminal designed for outdoor use with an IP65 rating. It supports both 5G mmWave and Sub-6 technologies, working in SA and NSA mode. It is powered by PoE (802.3bt) and provides a 10GbE port that can transmit multi-gigabit high-speed connections for internet access. The U501 5G mmWave CPE is based on the Qualcomm SDX65 chipset, which conforms to 3GPP Release 16 standard, and four QTM547 mmWave antennas.
more

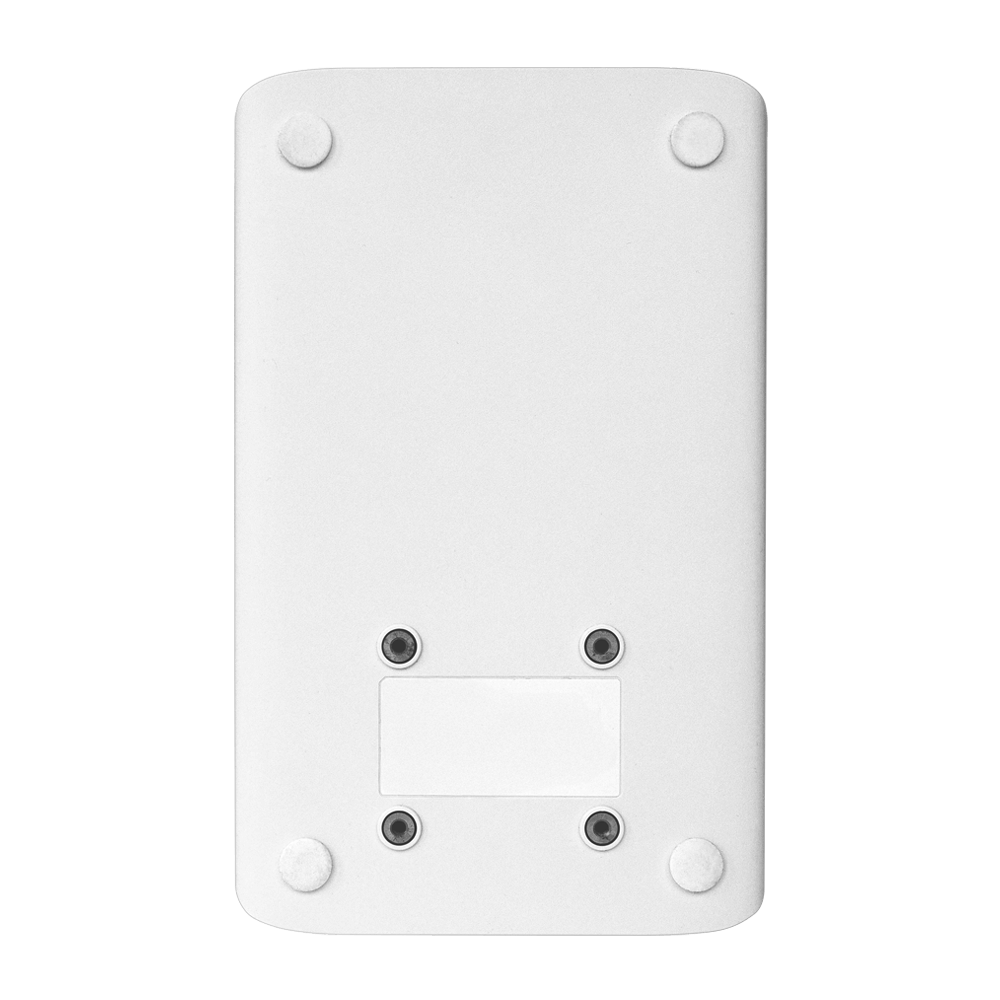

Thanks to its small form factor design, the U501 5G mmWave CPE can be installed on a wall or pole with a mounting bracket and function as a Fixed Wireless Access modem with a PoE cable to connect to the in-house WiFi Gateway. It can also be attached to moving vehicles such as tethered drones or trains.
